Schematics Click on the links below to view a detailed CAD drawing for the part indicated. Use your Browsers back button to return to this page |
Universal Microsystems Phone: 408-727-1313 |
 |
|
Home
Schematics Click on the links below to view a detailed CAD drawing for the part indicated. Use your Browsers back button to return to this page |
Universal Microsystems Phone: 408-727-1313 |
|
|
Restrictor 1/4" VCR Male inlet, Male outlet, 1.55"

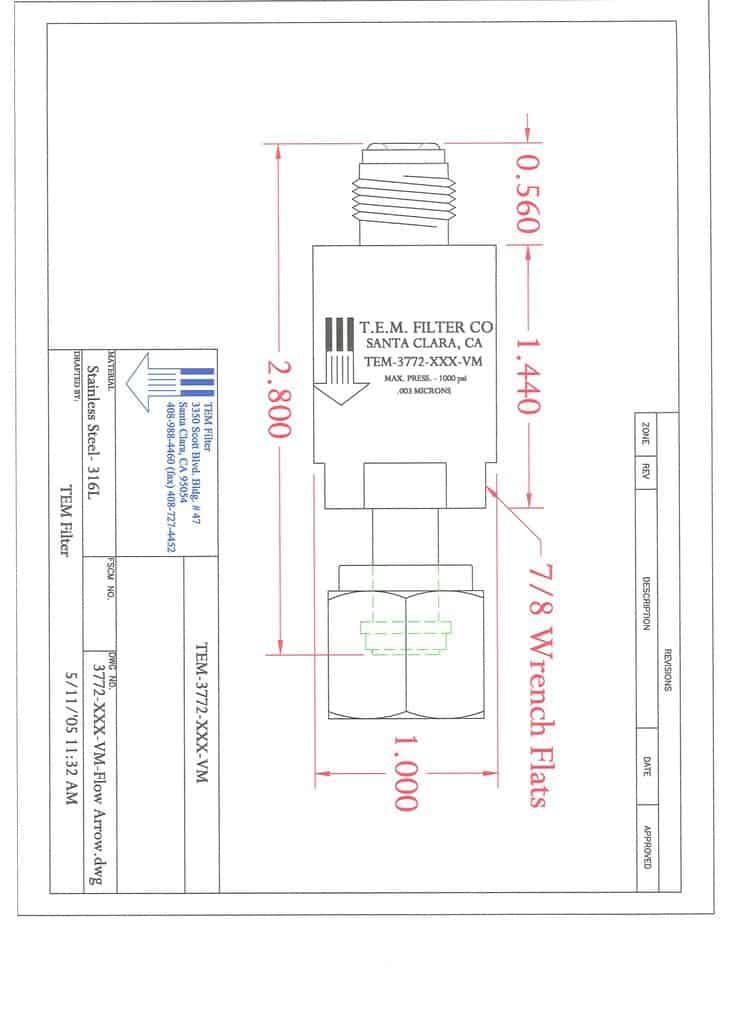

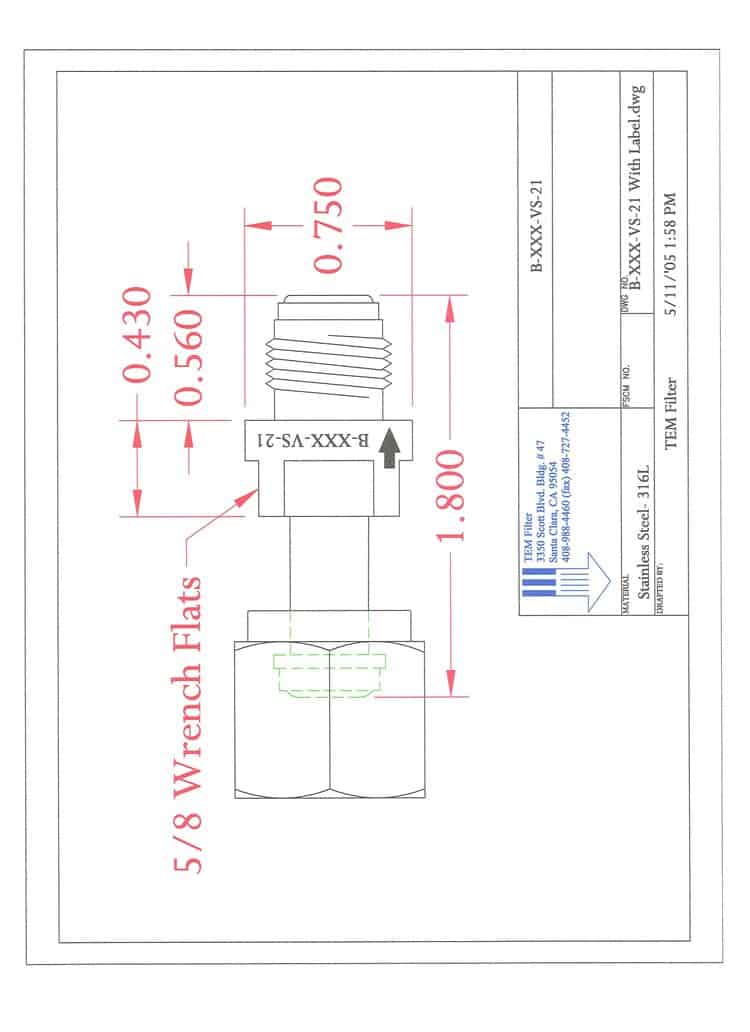

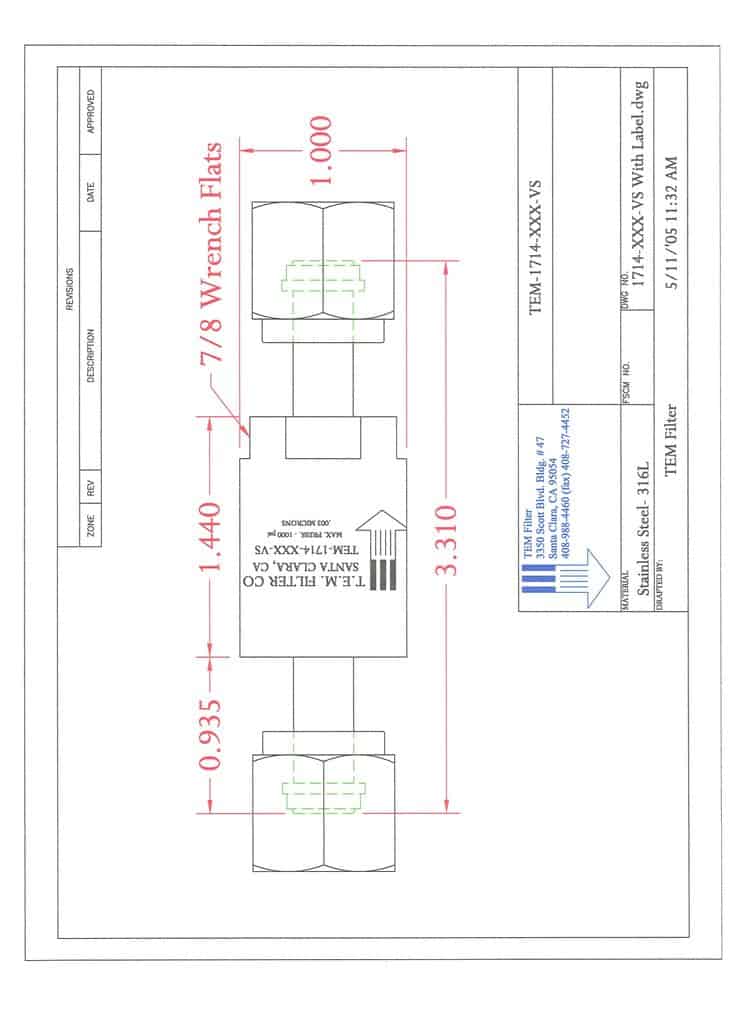

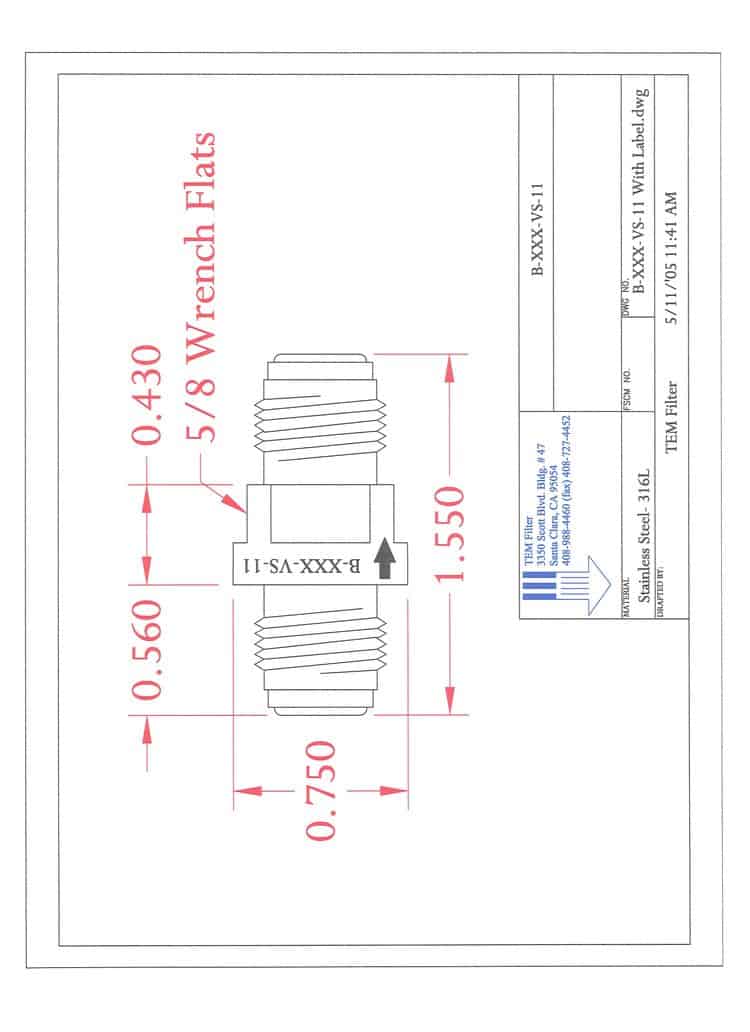

Model B-XXX-VS-11 download.stp file Restrictor 1/4" VCR Male inlet, Female outlet, 1.80" Model B-XXX-VS-12 download stp file Restrictor 1/4" VCR Female inlet, Male outlet, 1.80" Model B-XXX-VS-21 download stp file Filter/Restrictor 1/4" VCR Male inlet, Female outlet, 2.80" Model 3772-XXX-VM Ni media filter Filter/Restrictor 1/4" VCR Female Inlet, Female Outlet 3.31" Model 1714-XXX-VS Stainless Steel media filter Restrictor 1/4" VCR Male inlet, Male outlet, 1.37" Model G-XXX-PS-11 |
