Universal Microsystems
High precision, restrictive flow orifices for
gas flow control
Click to email <FONT color=#9900FF face=arial size=2>E-mail Us
Sales@flowrestrictor.com

Credit Card or PayPal orders
Universal Microsystems
47000 Warm Springs Blvd. Ste1#146
Fremont CA 94539
Sales@flowrestrictor.com
408-828-1460
Purchase orders in CA
Ewald Associates
48531 Warm Springs Blvd.
Fremont CA 94539
beatriz@ewaldonline.com
510-490-3900
Purchase orders outside CA
Banner Industries
One Industrial Drive
Danvers, MA 01923
978-777-0080

  • We stock orifices with diameters from 0.0002" to 0.075"
  • We use SS orifices for diameters >0.030" designated by Fxx where xx is the diameter in 0.001" units
  • We use sapphire orifices for diameters between 0.003" and 0.030" designated either Nxx or Rxx
  • Nxx orifices have a beveled inlet shape while Rxx have a flat inlet
  • We use Si orifices with diameters between 0.0002" and 0.0100"

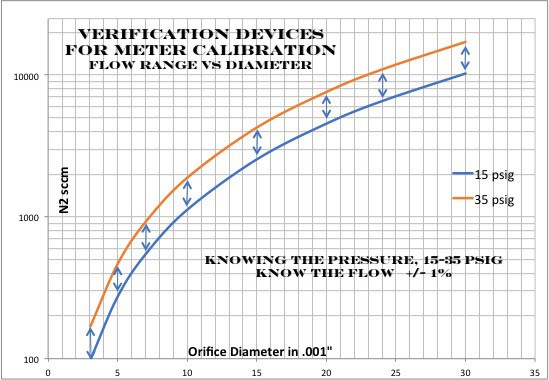

  • Link to gas flow vs diameter

    Available Bodies and Prices
    VCR Unions

    1/4" M/M w Embossed part# & serial ID
    154$ Info

    1/4" M/M w Embossed orifice ID
    125$ Info

    1/4" M/F or F/M w Embossed part#
    159$ Info

    1/8" M/M w Embossed Orifice ID
    129$ info

    1/4" F/F w Embossed Orifice ID
    169$ Info




    1/4" tube 1.70" or 1.20" length
    w Embossed Orifice ID
  • Use any orifice with compression fittings
  • SS and sapphire orifices for welding
    54$
    TubeInformation



  • 1 1/8" Surface mount Sandwich
    1/4" thickness.
    Embossed Orifice ID & serial #
    129$
    Information

    Cut-off filters. Point-of-use 99.9999999%, filtration with built in restrictor. Limit overflow to specified value.
    Information-Cut-off Filter For additional filter information contact TEM Filter Co.
    www.temfilter,com

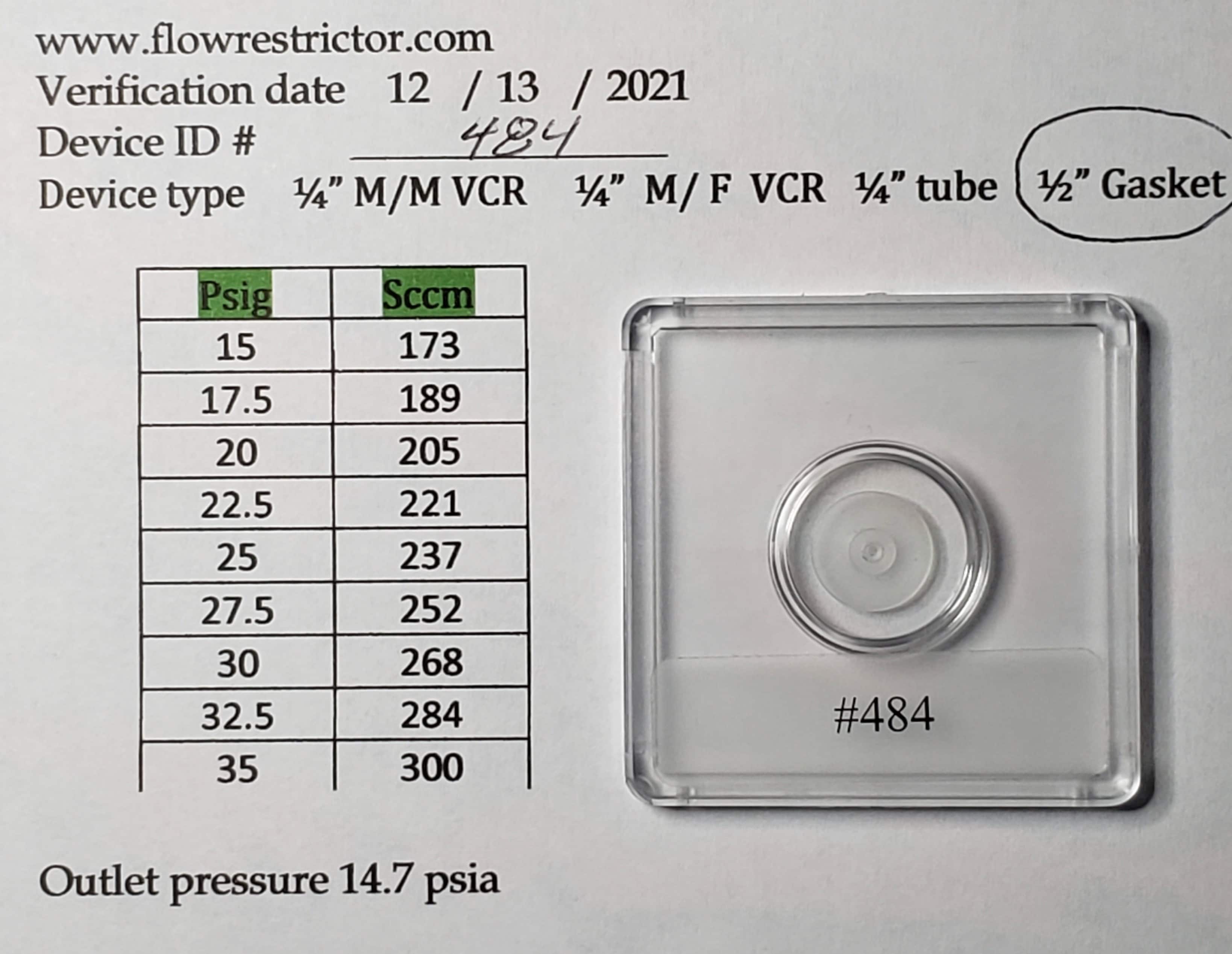

    Also, calibrated orifices
    for 1% accuracy flow source
    75$
    Gaskets


    Notes



    > Pricing requires CC, pre-paid, or COD
    > M/F and F/F are welded w He leak check 10-9 atm-cm/sec
    > 7 Ra surface finish
    > Restrictors ship 5.0 % flow specification
    > Calibration accuracy 1% @>100 sccm
    > Calibration accuracy from Primary Standards
